Facilities

Data Center

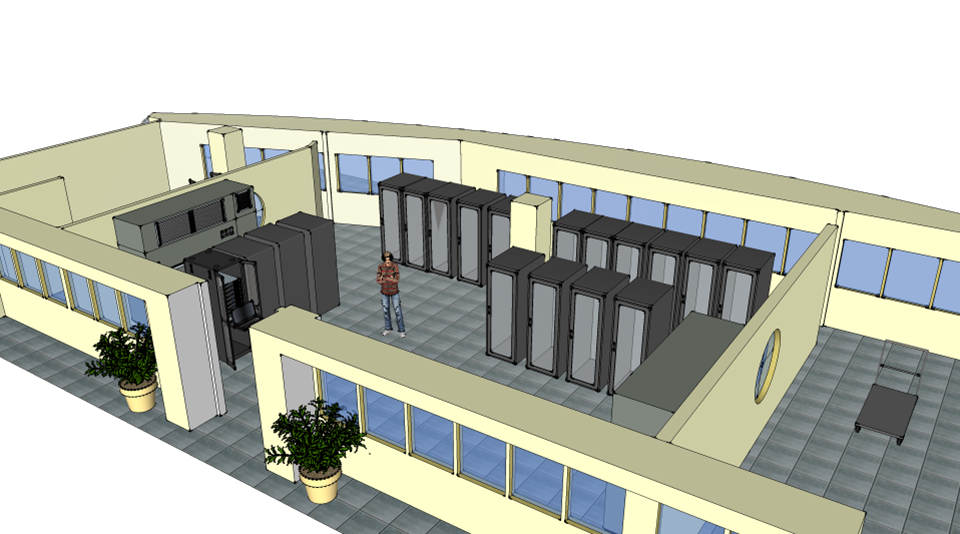

The Marshall University Data Center measures (1800) square feet in area and is equipped with a raised floorsystem and two (2) CRAC’s with a total capacity of 56 Tons. The data center supports six (5) rows of equipmentcabinets of moderate equipment density. The facility is located in an interior room centrally located close to centerof the 4th floor. The room is equipped with three (3) door sets located throughout the room. The doors are wellsealed to prevent air infiltration. Windows are present along the external walls of the data center.The 4th floor area was built on a raised floor with the sole purpose of expansion of the Data Center’s overallfootprint. It is estimated that the Data Center occupies only 25% of the raised floor area.

Data Center Dimensions

Marshall University Data Center is rectangular in shape with minor irregularities (seeFloor Plan). The approximate Data Center dimensions are:i. Length: 62’ 0” (62.00’)ii. Width: 33’ 0” (33.00’)iii. Height: 15’ 5” (15.50’) Slab to Truss BottomCeiling Heighti. 10’ 0” (10.00’) Slab to Truss Bottomii. 4’ 5” (4.50’) Ceiling Plenumiii.1’ 0” (1.00’) Floor PlenumRaised Floor DescriptionThe raised floor system consists of a Tate Manufacturing, Inc. tile system of 2’X2’ tiles set in a steel rail matrix.

The floor is built over a concrete slab located on the 4th floor. The slab appears to be in good condition, sealedwith no cracking observed. The plenum has some dust, metal shavings and other debris. The floor is equippedwith 26 perforated tiles (see detail below) and supports 25 equipment cabinets as well as associated HVAC andpower distribution equipment. Beneath the floor standard support stanchions are located at each grid-workintersection.

Raised Floor Depth

The raised floor depth is 0’ 10” (0.10’) measured from the slab to bottom of the raised floor. Cabletray is installed under the floor tiles.Sub-Floor Restrictions (Percentage Blockage, Support Piers, Cable Bundles, Walls, etc.)The sub-floor area is restricted by the following:i. Raised floor support piers with an effective frontal area of 36 sq. in. (+/-) per pier.Sub-Floor CRAC DivertersThe two CRAC’s are not equipped with diverters.

Raised Floor Perimeter

No leaks were observed during the inspection of facility. All raised floor/wall interfaces were tightand well sealed.Perforated Tile LocationsThe raised floor is configured with twenty-six perforated floor tiles as depicted below. All tiles were of standard25% open fully perforated type.
